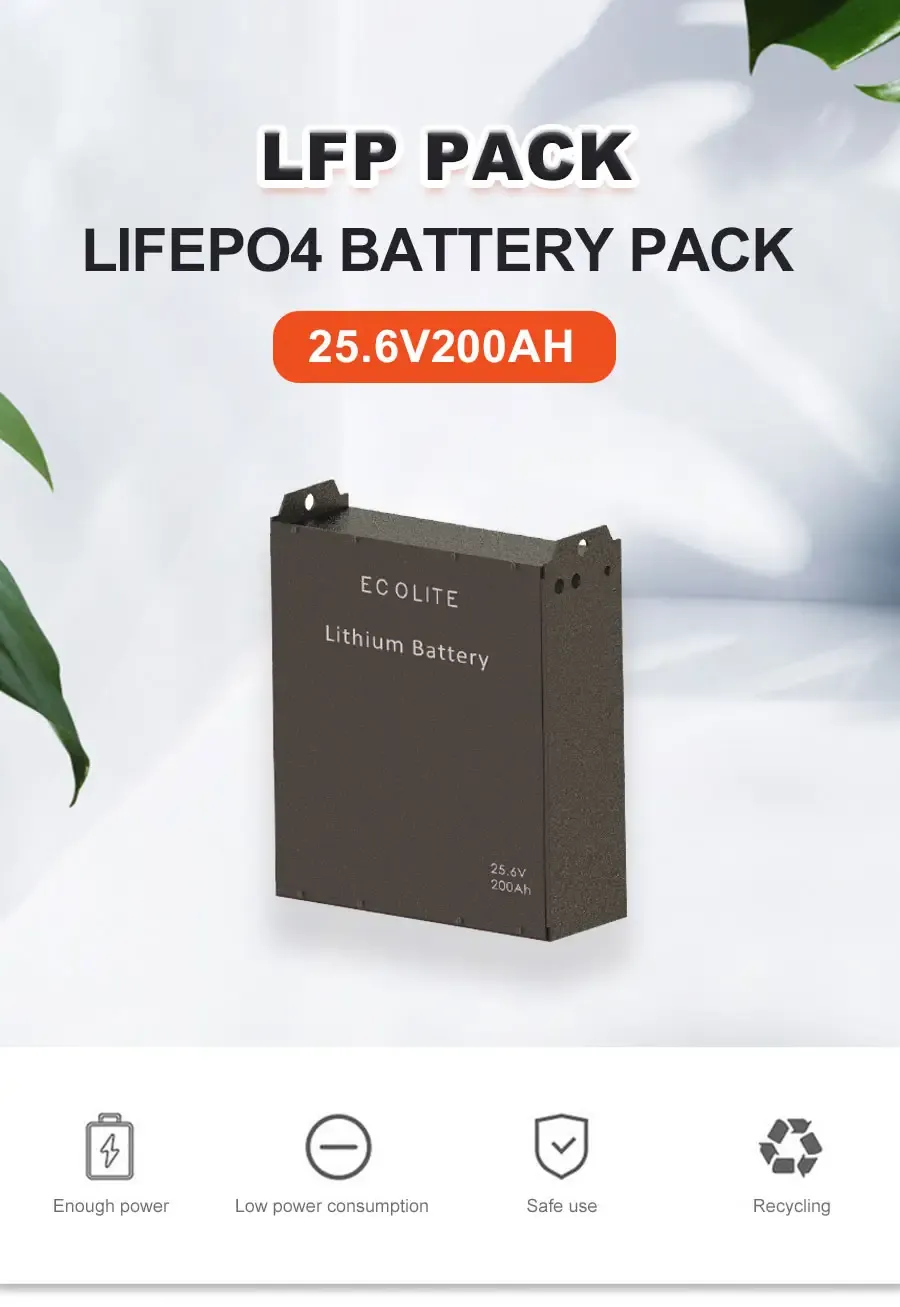

Forklift application backup power LiFePo4 battery pack 200Ah
| Electrical Parameters | |
| Nominal Voltage | 25.6V |
| Rated Capacity | 200Ah |
| Energy | 5.12KWh |
| Resistance | ≤2.5mΩ |
| Efficiency | 0.99 |
| Cycle Life | >4000cycles @1C,80% DOD |
| Self Discharge | 2% per Month |
| Max. Modules in Series/Parallel | 4P/8S |
| Mechanical Parameters | |
| Dimension(D×W×H) | 206*550*630mm |
| 8.11*21.65*24.80" | |
| Weight | 80kg（No counterweight included |
| Terminal Type | Optional |
| Battery Housing | Metal |
| Housing Protection | IP30(Optional) |
| Cell Type-Chemistry | LiFePO4 Cell |
| SOC | YES |
| Discharge Parameters | |
| Continuous Discharge Current | 200A |
| Maximum Discharge Current | 400A |
| Recommended Volt. Disconnect | 21.6V |
| BMS Discharge Cut-off Voltage | 20V |
| Reconnect Voltage | 24V |
| Short Circuit Protection | 300-800us |
| Charge Parameters | |
| Charge Method | CC-CV |
| Charge Voltage | 29.2V |
| Recommended Float Voltage | 28.8V |
| Recommended Charge Current | 200A |
| Maximum Charge Current | 400A |
| BMS Charge Cut-off Voltage | 30V |
| Temperature Parameters | |
| Discharge Temperature | -20 to 60 ℃ |
| Charge Temperature | 0 to 45 ℃ |
| Storage Temperature | -20 to 45℃ |
| BMS High Temperature Cut-off | 78 ℃ |
Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: one year
Q:What is your payment term ?
A: T/T,L/C
Q:do you accepte OEM order ?
A: Yes，you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q :How many cells you can produce per month?
A: 1.8million
Q :What is the mode of transport?
A: usually by sea

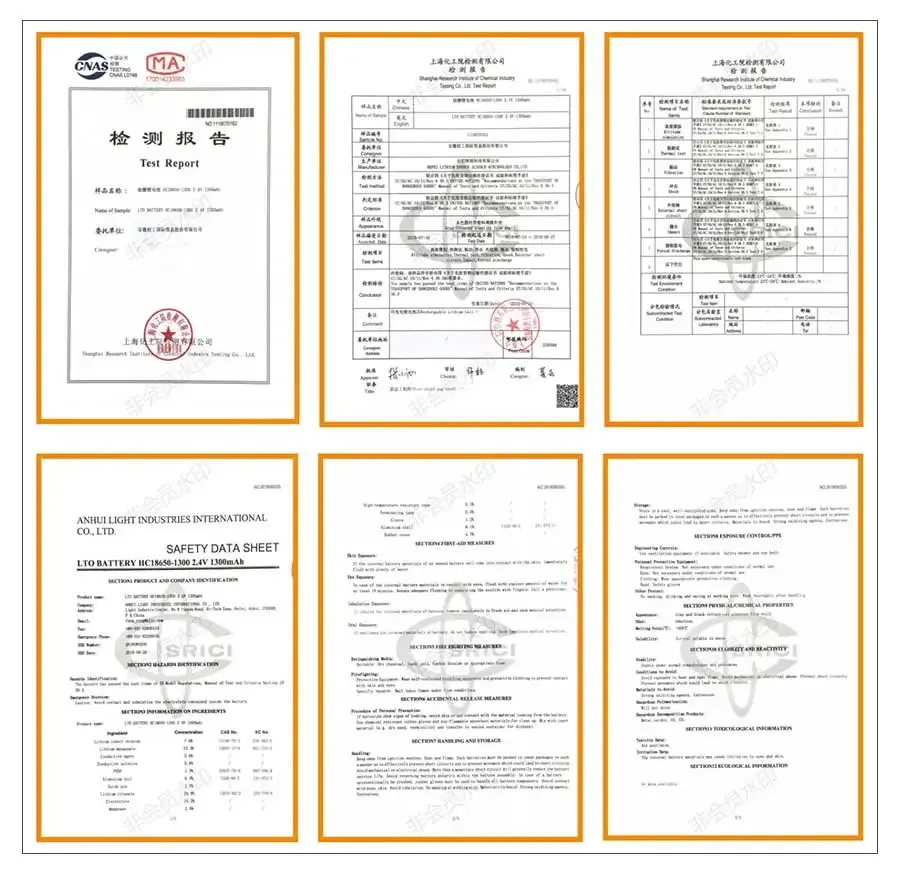

Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
